In every industrial piping system, elbows are among the most heavily stressed components. Their very function—changing flow direction-leads to increased velocity, turbulence, and localized wear. Over time, this results in faster degradation compared to straight pipes, especially under corrosive or abrasive conditions. For industries handling sour gas, abrasive slurries, high-temperature steam, or aggressive chemicals, the performance of ordinary elbows simply isn’t enough. That’s where clad elbows from FNS Pipeline come in—designed to last where traditional elbows fail.

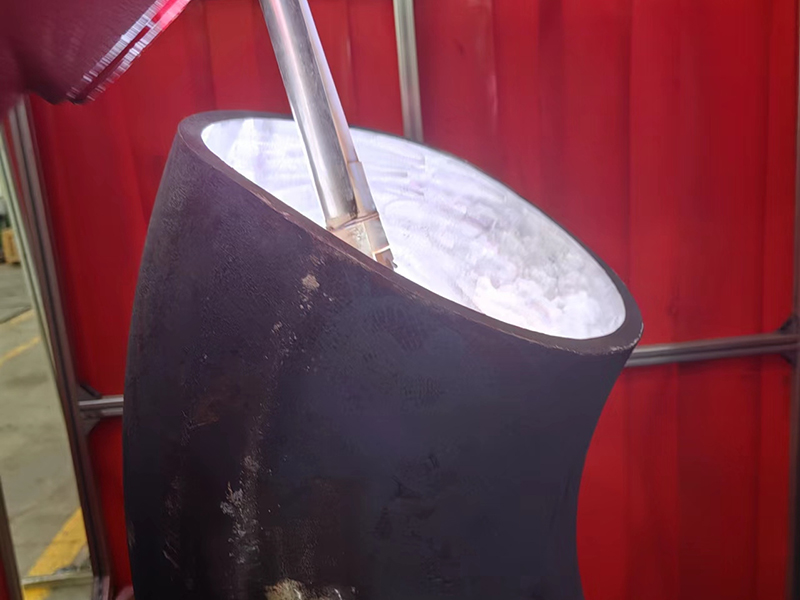

90 Degree Clad Elbows Manufactured By FNS
The Advantage of Clad Elbows Over Standard Elbows
Traditional elbows, made from a single material, are especially vulnerable. The change in flow direction at an elbow leads to increased localized stress, turbulence, and accelerated wear. When handling abrasive slurries, high-velocity gases, or corrosive fluids, this rapid degradation can result in:
- Premature Failure: Frequent leaks or ruptures that cause expensive emergency repairs and unplanned downtime.
- Safety Hazards: Risks of environmental contamination and injury from media leaks.
- Reduced Efficiency: Friction and blockages from material degradation can hinder flow and reduce system performance.
Clad elbows directly solve these vulnerabilities. They’re manufactured with a dual-material structure: a robust outer “base” material (typically carbon steel for structural integrity) and a metallurgically bonded inner “cladding” layer made from a high-performance alloy. This inner layer, often a nickel-based alloy or a wear-resistant material, provides specialized protection precisely where it’s needed most.
The unique construction of clad elbows offers several key advantages:
Superior Corrosion Resistance: For highly corrosive applications in petrochemical, chemical processing, or acid plants, the inner cladding of alloys like Inconel 625 or Hastelloy C276 offers an impenetrable barrier against acids, chlorides, and other aggressive chemicals. This performance, from a cost-effectiveness standpoint, far surpasses solid corrosion-resistant alloys for large-diameter components.
Enhanced Abrasion and Erosion Resistance: In industries like mining, dredging, or ash handling, where slurries and high-velocity particles cause severe wear, clad elbows with hard-facing alloys (e.g., chromium carbides) provide an exceptionally durable surface, significantly extending their service life.
How Are Clad Elbows Manufactured?
Producing high-quality clad elbows involves advanced manufacturing processes. A common method is direct weld overlay (cladding) onto the inner surface of formed elbows. Precision is key to ensuring a flawless metallurgical bond and consistent cladding thickness, especially given the complex geometry of an elbow. Strict quality control, including Non-Destructive Testing (NDT), is paramount for verifying bond integrity and ensuring there are no defects.
90 degree long radius cladded elbow with nickel-based alloy 625 weld overlay
Typical Applications for Pipeline Clad Elbows
Clad elbows are vital in a wide range of industries where conventional elbows simply can’t hold up:
- Oil & Gas / Petrochemical: Sour gas lines, acid injection points, catalytic cracking units, and pipelines handling corrosive fluids.
- Power Generation: Boiler feedwater lines, steam lines, and ash handling systems.
- Mining & Dredging: Slurry transport lines, particularly in areas where changes in direction cause high wear.
- Chemical Processing: Transfer lines for aggressive chemicals and reaction vessel connections.
- Wastewater Treatment: Piping exposed to abrasive grit or corrosive chemicals.
Partnering for Durability: FNS Pipeline’s commitment to corrosion-resistant elbows
At FNS Pipeline, we specialize in delivering high-performance clad elbows and other clad piping components that meet the most stringent industry standards. Our expertise in material selection, precision manufacturing, and rigorous quality control ensures that our clad elbows provide unparalleled durability, significantly extending the life of your critical piping systems. By choosing FNS Pipeline, you’re investing in reliable, long-lasting solutions that reduce operational risks and boost efficiency.
Ready to reinforce the weakest links in your piping system? Contact FNS Pipeline today to learn more about our custom weld overlay elbow solutions and how they can maximize the durability and safety of your industrial operations.
