How to Choose the Right Weld Overlay Material?
Choosing the right weld overlay material is absolutely crucial for the success of any weld overlay application. It’s more than just adding a protective layer; it’s about selecting the perfect alloy to tackle specific challenges like corrosion, abrasion, erosion, or high temperatures. This ensures your industrial assets achieve optimal performance and extended lifespan. This guide dives deep into how to choose the right weld overlay material, providing practical insights for selecting the ideal alloy for your specific needs.

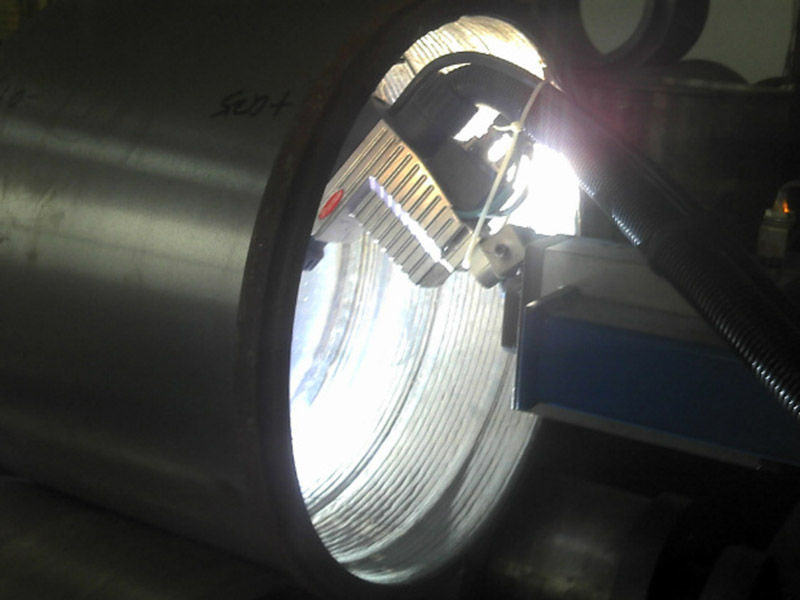

Cobalt-based alloy material overlay welding
Why Material Selection Matters in Weld Overlay
Weld overlay is more than just adding a wear-resistant coating—it’s about selecting an alloy that’s chemically and mechanically suited to the environment in which the component operates. A mismatch in material can lead to premature failure, increased maintenance costs, and operational risk. Careful weld overlay material selection ensures:
- Enhanced resistance to corrosion, erosion, or abrasion
- Prolonged service life and minimized downtime
- Compatibility with base metals to ensure strong metallurgical bonding
- Mechanical properties tailored to specific loads or conditions

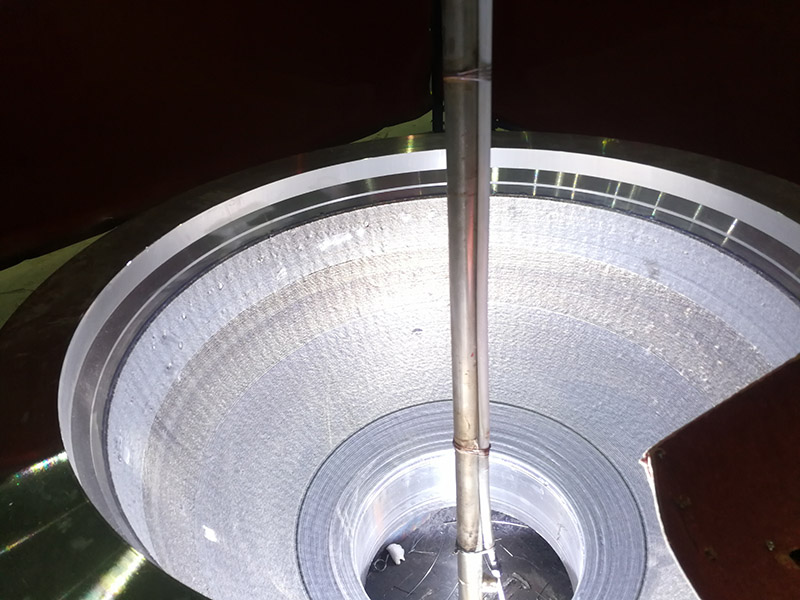

Nickel-Based Material Cladding Applied on Industrial Pump Sleeve
Key Considerations for Weld Overlay Material Selection
To effectively determine how to choose the right weld overlay material, you need to consider several critical factors. These will guide you in making the most informed decision:
1. Corrosion Environment Analysis:
Thoroughly understand your specific operating environment. Is it acidic, alkaline, oxidizing, reducing, or a combination? Does the medium contain chlorides, sulfides, or other specific corrosive ions? These factors will directly dictate the type of highly corrosion-resistant alloy you require.
2.Temperature Range Evaluation:
Determine the minimum and maximum operating temperatures of the component. High temperatures can significantly affect material properties and accelerate certain corrosion mechanisms, making it crucial to select an alloy that remains stable within that temperature range.
3.Abrasion/Erosion Mechanism Identification:
Clearly identify the specific mechanisms causing wear or erosion. Is it sliding abrasion, impact wear, or erosion caused by high-velocity fluids or particles? This will directly guide you towards selecting the appropriate hard-facing alloy to resist these specific forms of wear.
4.Base Material Compatibility:
The chosen weld overlay alloy must be metallurgically compatible with the base metal of the pipe or component. This is key to ensuring a strong, defect-free bond and preventing delamination.
5.Required Mechanical Properties:
Does your application demand specific mechanical properties from the overlay layer, such as particular hardness, ductility, or impact resistance? These requirements will further narrow down the alloy selection.
6.Cost-Effectiveness Balance:
While meeting all performance requirements, it’s also important to balance the material cost with the overall application cost. The most expensive material isn’t always the best choice; the key is finding the optimal balance between performance and economic viability.

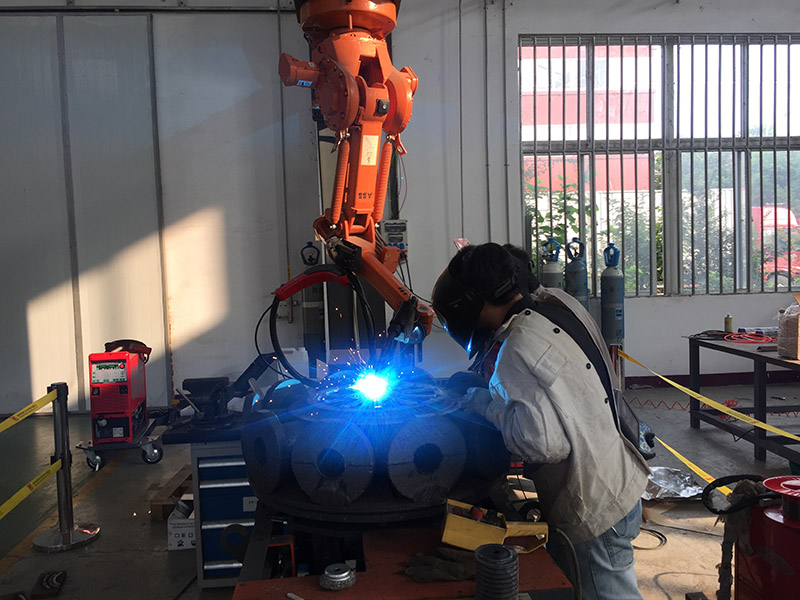

Iron-Based Material Overlay Cladding for Industrial Wear Protection
Common Weld Overlay Material Selection Categories and Their Typical Applications
Based on their primary protective functions, weld overlay materials can generally be categorized as follows, guiding your selection process:
Nickel Alloy Weld Overlay (e.g., Inconel 625, Hastelloy C276):
- Characteristics: These alloys offer exceptional corrosion resistance to a wide range of aggressive acids, chlorides, and oxidizing/reducing environments, alongside excellent high-temperature strength.
- Applications: Nickel alloy weld overlay is often the first choice for the most severe corrosive conditions, widely used in the petrochemical industry (e.g., reactors, pipes handling sulfuric acid and chlorides), oil and gas (sour gas service, offshore risers), and chemical processing.
Stainless Steel Weld Overlay (e.g., SS 309L, SS 316L, Duplex 2205/2507):
- Characteristics: Provides good general corrosion resistance, particularly against atmospheric and mild chemical environments. Duplex stainless steels offer higher strength and pitting resistance.
- Applications: Suitable for general industrial piping, water treatment facilities, some milder chemical processes, and the food and beverage industry.
Hard-Facing Alloys (e.g., Chromium Carbides, Tungsten Carbides):
- Characteristics: Possess extreme hardness and superior abrasion protection. They are designed to resist wear from solid particles and impact.
- Applications: This is a crucial consideration for weld overlay material selection in wear-prone components, extensively used in mining (slurry pipelines, hoppers), power generation (coal pulverizers, ash handling systems), and dredging operations.
Cladded pipeline with nickel-based alloy overlay for offshore applications
The Expertise Required for Optimal Weld Overlay Material Selection
To effectively choose the right weld overlay material, theoretical knowledge alone is insufficient. It requires extensive practical experience and a deep understanding of metallurgical interactions. Companies specializing in weld overlay possess the expertise to analyze your specific operating conditions, recommend the optimal alloy, and precisely execute the application. They can navigate the complexities of alloy compatibility, dilution control, and post-weld heat treatment to ensure the desired properties are achieved.
At FNS Pipeline, our engineers specialize in precise weld overlay material selection, ensuring your components receive the ideal corrosion-resistant alloy or hard-facing solution. We partner closely with you to analyze your unique challenges and provide tailored nickel alloy weld overlay or other specialized solutions, guaranteeing optimal performance and extended lifespan for your critical assets.
Looking to extend the life of your equipment or reduce maintenance costs?
Contact FNS Pipeline to discuss your weld overlay material requirements and receive a customized recommendation from our technical experts.
