Key Techniques for Achieving Single-Sided Welding with Double-Sided Formation

In the realm of modern industrial fabrication, particularly in pipeline construction, pressure vessel manufacturing, and shipbuilding, challenges often arise where welders can only access one side of a weld joint. Yet, to ensure structural integrity and compliance with stringent regulatory standards (such as meeting Level II or III radiographic inspection standards as per ASME Boiler and Pressure Vessel Welder Examination Rules), welds must achieve full penetration and form a high-quality, aesthetically pleasing weld bead on the opposite side.

This is where the technique of Single-Sided Welding with Double-Sided Formation (SSW-DSF) becomes indispensable. SSW-DSF is an advanced welding method that allows welders or automated equipment to operate from only one side, while still producing a perfect, defect-free weld bead on the inaccessible side (the backside). This eliminates the need for time-consuming back-gouging, grinding, and re-welding from the reverse side.

At FNS Pipeline, we leverage our deep expertise and advanced technology to master the critical techniques of SSW-DSF, providing high-integrity welding solutions for your most complex projects.

Why SSW-DSF Is Essential for Critical Welds?

Mastering the Single-Sided Welding with Double-Sided Formation technique is not merely a convenience; its advantages make it a crucial choice for many critical applications:

Overcoming Access Limitations: SSW-DSF is the only solution when internal access to a pipeline, within a confined vessel, or inside complex structures is impossible.

Significantly Boosts Production Efficiency: By eliminating the need for back-gouging (e.g., carbon arc gouging, grinding) and re-welding from the backside, the total welding cycle time is drastically reduced, lowering labor costs and energy consumption. This streamlines the fabrication process.

Optimizes Weld Quality and Consistency: When executed correctly, SSW-DSF minimizes defects that can arise from multi-sided operations (such as lack of fusion, slag inclusions, or porosity), ensuring a cleaner, more consistent root bead.

Reduces Overall Project Costs: Direct savings come from reduced labor hours, consumables (grinding discs, gouging carbons), and rework. Indirect savings arise from faster project completion and reduced inspection costs.
Minimizes Welding Distortion: Through more precise heat input control, SSW-DSF can help reduce residual stress and distortion in the welded component.

Technical Challenges in Achieving SSW-DSF

Despite its significant advantages, successfully implementing SSW-DSF is highly challenging and demands exceptional control and profound welding expertise. Key challenges include:

Precise Penetration Control: Ensuring the weld metal fully penetrates the joint thickness, avoiding both burn-through and insufficient penetration.

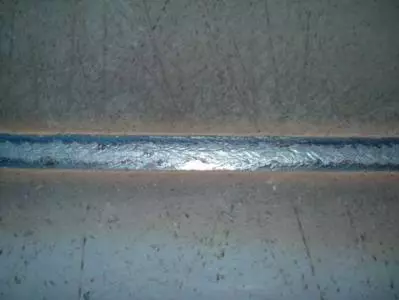

Backside Weld Bead Formation Control: Forming a flat, visually appealing, and defect-free weld bead on the inaccessible side.

Heat Input Management: Balancing sufficient heat for penetration with avoiding excessive heat that could lead to distortion or degradation of material properties.

Defect Prevention: Root weld defects like porosity, lack of fusion, or inclusions are extremely difficult to repair from a single accessible side.

Material and Thickness Sensitivity: Different material types (carbon steel, stainless steel, alloy steel) and varying plate thicknesses respond uniquely to welding parameters, requiring specific techniques.

FNS Pipeline’s Key Technical Strategies for Successful SSW-DSF

At FNS Pipeline, we apply deep expertise in SSW-DSF through meticulous control and integrated application of the following key technical strategies, ensuring the successful delivery of high-integrity welds:

1. Precise Joint Preparation and Fit-Up Control

Joint preparation is the cornerstone of successful SSW-DSF. Even minor deviations can compromise the root pass.

Precise Root Gap & Root Face Control:

Root Gap: Must be exact and consistent, typically matching or slightly exceeding the electrode diameter (0.5-1.0 mm) to allow electrode access and ensure full penetration.

Root Face Thickness: The flat surface at the bottom of the bevel is crucial. Too thin risks burn-through, while too thick makes penetration difficult. Typically 0.5 mm for thin sections (around 3 mm) and 1.5-2.0 mm for thicker materials (>12 mm), aiding molten pool control and heat dissipation.

Accurate Bevel Angle: Such as a V-groove typically between 60°-70°, to ensure the torch/wire can properly access the root.
Strict Fit-up Alignment: Components must be aligned with minimal misalignment to prevent variations in root geometry.

2. Optimized Welding Process Selection

The choice of welding process is critical for SSW-DSF due to its inherent control and penetration characteristics.

Gas Tungsten Arc Welding (GTAW / TIG):

Preferred for Root Pass: TIG welding is chosen for its unparalleled control over the weld pool, arc stability, and ability to produce clean, high-quality welds with very low heat input and dilution.

Pulsed TIG: Using pulsed current enhances penetration control, reduces heat input, and helps manage the weld pool more effectively, especially for thinner sections or tricky positions.

Gas Metal Arc Welding (GMAW / MIG/MAG):

Specific Modes: While less precise for root than TIG, advanced GMAW modes like Short Circuit Transfer (for thin materials), Pulsed MIG (for better control and reduced spatter), or controlled short-circuit methods can be adapted for SSW-DSF in certain applications.

Flux-Cored Arc Welding (FCAW):

Specialized Applications: Some specialized self-shielded or gas-shielded FCAW wires are designed to achieve good root penetration and backside formation, particularly on thicker sections in automated processes.

Submerged Arc Welding (SAW):

Automated Production: Primarily for highly automated applications on thicker plates, where specific flux and wire combinations can facilitate SSW-DSF.

3. Precise Welding Parameter Optimization

Fine-tuning welding parameters is paramount for consistent SSW-DSF results.

Current & Voltage: Precisely set to ensure the arc energy just melts through the root without burn-through or insufficient penetration.

Travel Speed: Critical for managing heat input and controlling the formation of the root bead on the backside. Too fast can lead to lack of penetration; too slow can cause excessive penetration or burn-through.

Wire Feed Speed: Must be coordinated with current and travel speed to ensure proper fill and root formation.

“Burn-Through” Technique: During the root pass, welders intentionally manage a small molten “keyhole” (typically 1.1-1.5 times the root gap in diameter) that confirms full penetration and shapes the backside bead. This requires highly skilled control of torch angle, wire feed, and travel speed to continuously form, close, and advance this keyhole.

4. Critical Backing Methods for Double-Sided Formation

To achieve the “Double-Sided Formation” effect, supporting and shaping the molten root bead on the inaccessible side is crucial, primarily through specialized backing techniques.

Inert Gas Backing/Purging:

Most Common and Critical: Essential for reactive metals like stainless steel, titanium, and nickel alloys. A continuous flow of high-purity inert gas (e.g., Argon) is purged into the backside of the joint, displacing oxygen, preventing oxidation of the molten root bead, and ensuring a clean, strong, and corrosion-resistant root.

Ceramic Backing:

Disposable, pre-formed ceramic tiles are placed directly under the joint. They act as a mold for the molten root bead, protect it from the atmosphere, and are removed after welding.

Copper Backing:

Reusable copper bars or shoes, often with a pre-machined groove. Copper’s excellent thermal conductivity helps dissipate heat, preventing burn-through, while the groove shapes the root bead. Often used with gas purging.

Flux Backing:

Primarily used in Submerged Arc Welding, where a layer of granular flux is placed under the joint to support and protect the root.

Consumable Inserts:

Pre-formed rings or inserts of filler metal are placed in the root gap. They melt and fuse into the weld, ensuring complete root fusion and a consistent bead in highly critical applications.

5. Highly Skilled Operators & Advanced Automation

Both manual and automated SSW-DSF demand exceptional skill and precision. Manual welders require stable hand control and precise judgment. Automated systems, through sensors and feedback control, can make millisecond-level adjustments to parameters, ensuring unparalleled consistency and repeatability for large-scale production.

FNS Pipeline: Your Partner for Precision Welding & Pipeline Integrity

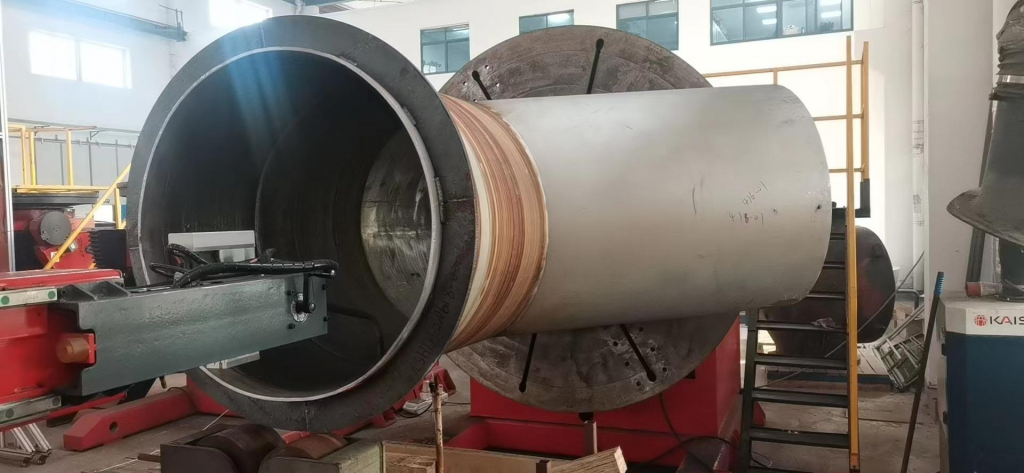

Complex welding demands precision and unparalleled expertise. While FNS Pipeline’s core strength lies in overlay welding for pipeline system products, our successful application of intricate methods like Single-Sided Welding with Double-Sided Formation (SSW-DSF) showcases our rich background and profound knowledge across all facets of welding technology.

We’re not just overlay specialists; we’re welding problem-solvers. From crucial pipeline system enhancements to challenging fabrication requirements that demand advanced techniques like SSW-DSF, our team is equipped with the technical prowess to ensure your project’s success.

Ready to elevate your welding standards? Reach out to FNS (Nanjing) Surface Engineering Service Co., Ltd. today for expert consultation and a tailored quotation.
