What is overlay cladding? Common methods and applications

In demanding industrial environments, critical components are constantly exposed to wear, corrosion, erosion, and high temperatures, leading to premature failure and costly downtime. Overlay cladding, a sophisticated surface engineering technique, provides a powerful solution to these challenges. By applying a protective layer of advanced material onto a base component, cladding significantly enhances its surface properties without altering the bulk material’s characteristics.

This innovative process extends component lifespan, improves performance, reduces maintenance costs, and optimizes the use of high-value materials. Understanding what overlay cladding entails, its various methods, and its diverse applications is crucial for industries seeking durable and reliable solutions.

What is Overlay Cladding? A Foundational Concept

Overlay cladding is a metallurgical process where a wear-resistant, corrosion-resistant, or otherwise functionally superior material is metallurgically bonded to the surface of a less expensive or less resilient base material. Unlike simple coatings, cladding creates a true metallurgical bond, forming a unified material with enhanced surface properties and the bulk properties of the substrate.

The primary purpose of overlay cladding is to:

1.Enhance Surface Properties: Provide resistance to wear (abrasion, erosion, friction), corrosion, heat, or cavitation.
2.Extend Component Lifespan: Protect critical parts from premature degradation, reducing the need for frequent replacement.
3.Optimize Material Use: Utilize costly high-performance alloys only where needed on the surface, while the bulk component remains made of a more economical material.
4.Recondition Components: Restore worn or damaged parts to their original specifications or even improve upon them.

Common Overlay Cladding Methods

The choice of cladding method depends on the material, component size, desired thickness, and specific application requirements. Each technique offers unique advantages:

1. Weld Overlay (Arc Welding Processes)

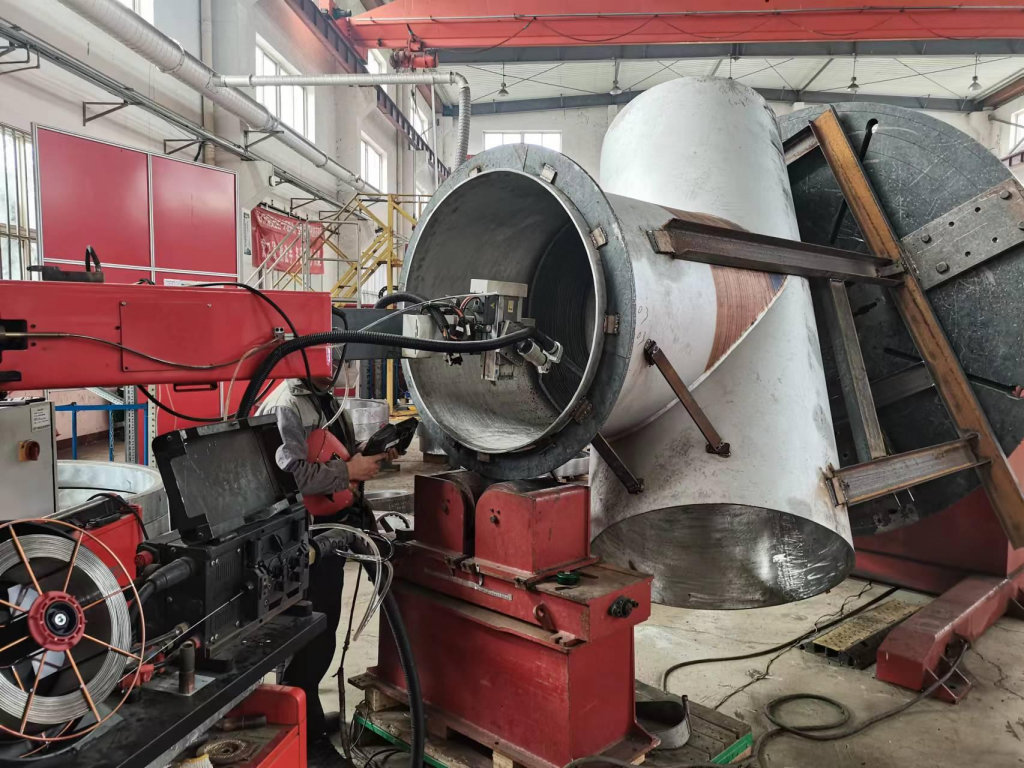

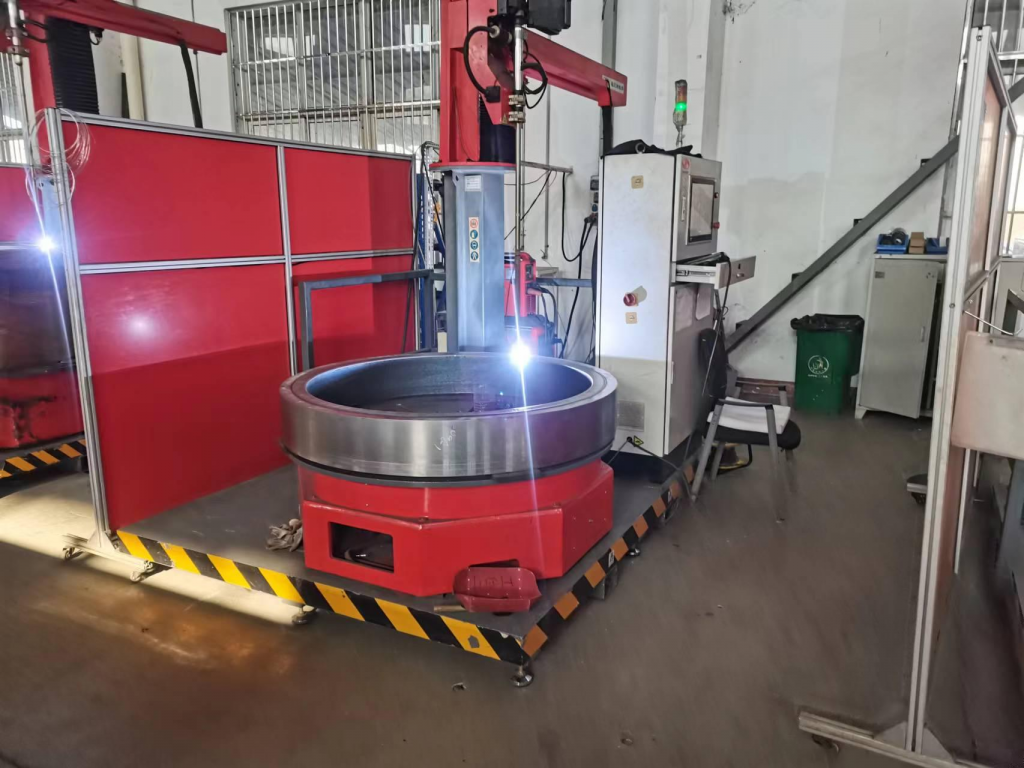

Weld overlay is one of the most widely used cladding methods, employing various arc welding techniques to deposit a layer of filler metal onto the base material.

Process: Filler material (wire, electrode) is melted by an electric arc and fused onto the substrate, creating a strong metallurgical bond. Common techniques include:
Submerged Arc Welding (SAW): High deposition rates, good quality, often used for large, flat surfaces or cylindrical components.
Gas Metal Arc Welding (GMAW / MIG): Versatile, relatively fast, suitable for various geometries.
Flux-Cored Arc Welding (FCAW): Similar to GMAW but uses a tubular wire with flux.
Shielded Metal Arc Welding (SMAW / Stick Welding): Manual, versatile for small repairs or specific areas.
Electroslag Strip Cladding (ESSC): Very high deposition rates for large areas.
Advantages: High deposition rates, robust metallurgical bond, ability to apply thick layers, wide range of compatible materials.
Applications: Pressure vessels, boiler components, valve seats, wear plates, mining equipment, rollers.

2. Plasma Transferred Arc (PTA) Cladding

PTA cladding uses a concentrated plasma arc to melt both the filler material (powder) and a small portion of the substrate, creating a highly precise and low-dilution overlay.

Process: A non-consumable tungsten electrode generates a plasma arc, heating and melting the powder feedstock as it’s fed into the melt pool.
Advantages: Very precise control, minimal dilution with the base material (maintaining overlay properties), low heat input to the substrate, excellent wear and corrosion resistance properties.
Applications: Valve components (stems, seats), pump shafts, turbine blades, tool repair, hardfacing of critical components.

3. Laser Cladding

Laser cladding employs a high-power laser beam to melt the surface of the substrate and the fed-in filler material (powder or wire), forming a clad layer.

Process: The laser creates a small, highly localized melt pool, allowing for rapid solidification and fine microstructure.
Advantages: Very low heat input (minimal distortion), high precision, fine microstructure, excellent metallurgical bond, ability to clad heat-sensitive materials, environmentally friendly.
Applications: Turbine components, aerospace parts, medical implants, automotive components, high-wear tools, precision hardfacing.

4. Thermal Spraying

While technically a coating process (mechanical bond) rather than a metallurgical cladding (metallurgical bond), thermal spraying is often considered alongside cladding for surface enhancement, particularly for corrosion and erosion protection.

Process: Material (wire or powder) is heated to molten or semi-molten state and propelled onto the substrate surface.
Advantages: Can apply a wide range of materials (ceramics, metals), relatively low heat input to substrate, versatile for large or complex geometries.
Applications: Anti-corrosion layers, thermal barriers, wear-resistant coatings (e.g., for piston rings, cylinders).

Key Benefits of Overlay Cladding

Implementing overlay cladding offers significant advantages across various industrial sectors:

Extended Component Lifespan: By armoring surfaces against harsh operating conditions, cladding drastically increases the service life of expensive parts.
Enhanced Performance: Improved resistance to specific forms of degradation (e.g., abrasion, cavitation, high-temperature corrosion) leads to more reliable and efficient operation.
Cost Savings: Reduces the frequency of replacement parts, minimizes downtime for repairs, and allows for the use of less expensive base materials.
Material Optimization: High-performance alloys are applied only where their properties are needed, conserving costly raw materials.
Component Reconditioning: Worn parts can be restored and upgraded, offering a sustainable alternative to replacement and often exceeding original equipment manufacturer (OEM) specifications.
Improved Safety & Reliability: Robust, protected components reduce the risk of unexpected failures in critical systems.

Common Applications of Overlay Cladding

Overlay cladding is a versatile solution employed across a vast array of industries and components:

Oil & Gas Industry:

Pipelines & Risers: Internal and external corrosion protection.
Valve Components: Seats, gates, balls, and stems for wear and corrosion resistance in harsh environments.
Drilling Tools: Enhancing wear resistance for bits and downhole tools.

Power Generation:

Boiler Tubes & Heat Exchangers: Protection against corrosion and erosion in high-temperature, aggressive environments.
Turbine Components: Extending lifespan of blades, rotors, and shafts in gas and steam turbines.
Pump Casings & Impellers: Protecting against erosion and cavitation.

Mining & Heavy Machinery:

Wear Plates & Chutes: Protecting surfaces from extreme abrasive wear.
Excavator Buckets & Crusher Components: Enhancing hardness and impact resistance.
Rollers & Shafts: Improving wear and fatigue resistance.

Chemical & Petrochemical Processing:

Reactors & Vessels: Corrosion-resistant linings for corrosive media.
Pumps & Mixers: Protecting against chemical attack and abrasive slurries.

Marine Industry:

Propeller Shafts & Bearings: Corrosion and wear protection in seawater environments.
Rudolf Systems: Enhancing durability.

General Manufacturing:

Dies & Molds: Improving lifespan and wear resistance for forming tools.
Hydraulic Cylinders: Enhancing surface hardness and corrosion resistance.
