Arc Welding Overlay vs Plasma Welding Overlay: Which method is right for your project?

In the world of industrial surface engineering, choosing the right overlay welding technique is critical to enhancing component durability, corrosion resistance, and service life. Among the most widely applied methods, Arc welding overlay vs plasma welding overlay stands out as a key comparison that engineers and project managers must understand when selecting the best solution for demanding applications. Both methods offer distinct advantages in terms of performance, cost, and operational flexibility — making the right choice essential for maximizing equipment reliability and minimizing maintenance costs.

This article offers a practical comparison of arc welding overlay vs plasma welding overlay, helping you evaluate key factors like dilution rate, deposition efficiency, weld quality, and overall project cost.

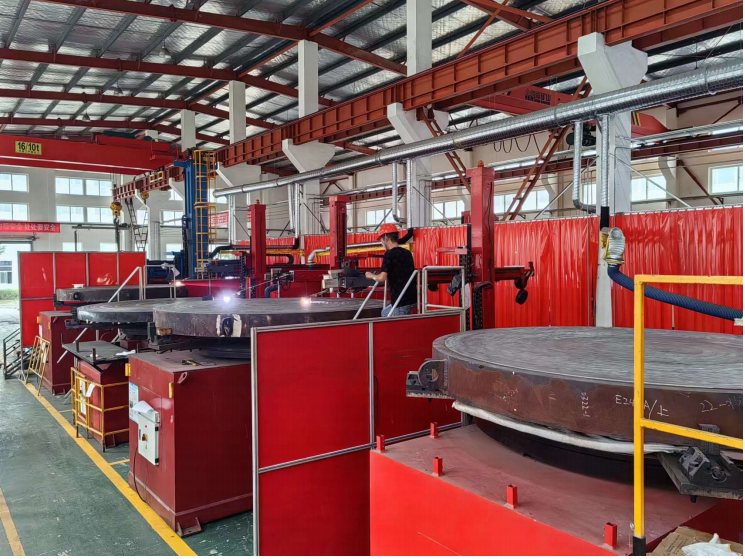

Manual arc welding overlay for industrial surface protection

Understanding Overlay Welding in Industrial Applications

Overlay welding is a metallurgical technique used to apply a wear-resistant or corrosion-resistant layer onto the surface of a component. Unlike simple coatings, weld overlays create a metallurgical bond with the base material, ensuring superior durability even under mechanical stress or chemical exposure.

Choosing between arc welding overlay and plasma welding overlay depends on project-specific factors such as environmental conditions, required service life, budget constraints, and performance expectations.

Arc Welding Overlay — Cost-Effective Surface Protection

Arc welding overlay relies on an electric arc to fuse filler material onto a metal surface. It’s a flexible and economical solution for general wear protection and corrosion resistance.

Key Characteristics:

• Moderate Dilution Rate (15%–30%) — Sufficient for many industrial applications but may influence the alloy performance.
• Good Deposition Rate — Offers a practical balance between welding speed and layer thickness.
• Lower Equipment Investment — Arc welding systems are widely available and budget-friendly.
• Manual or Semi-Automated Operation — Adaptable to various production needs.

Best suited for:
Projects where cost control is critical, and the overlay serves primarily for wear protection in non-extreme environments.

Plasma Welding Overlay (PTA) — High-Performance Cladding for Critical Applications

Plasma welding overlay, also known as Plasma Transferred Arc (PTA) cladding, uses a constricted plasma arc to deposit a uniform, high-quality alloy layer with minimal dilution. It is recognized for its precision and exceptional metallurgical properties.

Key Characteristics:

• Low Dilution Rate (<10%) — Ensures alloy integrity and optimal surface properties.
• Superior Weld Quality — Produces crack-free overlays with consistent mechanical performance.
• High Deposition Efficiency — Enables fast application while maintaining excellent heat control.
• Ideal for Precision Components — Preferred in industries like aerospace, energy, and oil & gas.

Best suited for:
Critical components requiring maximum wear resistance, corrosion protection, and dimensional accuracy.

Arc Welding Overlay vs Plasma Welding Overlay — Side-by-Side Comparison

How to Choose the Right Overlay Welding Method?

When considering overlay welding for your project, ask yourself:

• What are the operating conditions?
  For aggressive corrosion or wear environments, plasma overlay is the better choice.
• What is your project budget?
  Arc welding overlay offers a cost-effective option for less critical applications.
• Do you require precise dimensional control or low dilution?
  Plasma overlay excels in precision and metallurgical performance.
• What is your production volume?
  Plasma overlay may justify higher upfront costs with efficiency in large-scale production.

Real-World Example: Applying Overlay Welding in Industry

At FNS (Nanjing) Surface Engineering, we support clients across petrochemical, power generation, and heavy machinery industries with tailored overlay welding solutions.

✅ For a petrochemical client, we applied PTA cladding on valve seats operating in acid gas conditions — achieving three times the service life compared to arc welding overlay.
✅ In a mining application, an arc welding overlay on wear plates reduced downtime while staying within tight budget limits.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between arc welding overlay and plasma welding overlay?
A1: Arc welding overlay is more cost-effective and suitable for less critical applications, while plasma welding overlay provides superior weld quality and lower dilution, ideal for demanding industrial uses.

Q2: Is plasma overlay worth the higher cost?
A2: Yes, for applications where corrosion resistance, wear performance, and long service life are critical, plasma overlay often delivers a better return on investment.

Q3: Does FNS offer both overlay methods?
A3: Yes, FNS provides both arc welding and plasma welding overlay services, customized to project requirements.

Why Choose FNS for Your Overlay Welding Needs?

With nearly 20 years of experience in weld overlay cladding, FNS delivers:

• Advanced automated cladding systems for consistent quality
• Expertise in corrosion-resistant alloys and overlay technology
• Comprehensive quality control and inspection services
• Customized overlay solutions for elbows, valves, pipes, and more

Making the Right Choice for Your Overlay Welding Project

Whether you need cost-effective surface protection or premium overlay for critical components, understanding the strengths of arc welding overlay vs plasma welding overlay is key to project success.

At FNS (Nanjing) Surface Engineering Service Co., Ltd., we help you select and apply the most suitable overlay technology — enhancing component performance, reducing maintenance costs, and extending service life.

Contact us today to discuss your overlay welding needs and discover how our customized solutions can support your industrial applications.
